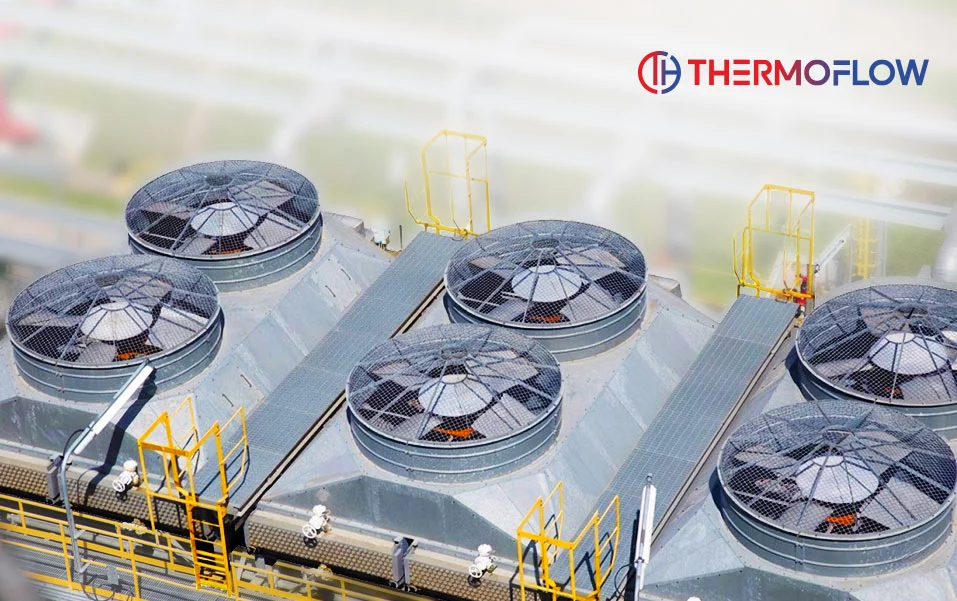

Air coolers (ACUs) and cooling coils are designed for cooling and condensing gaseous, liquid, and vapor-liquid media in industrial processes in the chemical, petrochemical, oil refining, oil, and gas industries. They can be used for media with pressures from 0.6 to 10 MPa (6-100 kgf/cm²) or under vacuum with a residual pressure of at least 665 Pa, temperatures no higher than 400°C, and outlet viscosity up to 5*10-5. Thermoflow products are designed for operation in harsh conditions, making them suitable for the oil and gas, chemical, and power industries. The design can include air cooling, simplifying maintenance and significantly reducing recirculating water consumption. If necessary, companies can select and purchase cooling units tailored to specific media parameters, flow rates, and operating modes. Their use improves production safety, reduces the thermal load on downstream components, and extends the service life of the equipment.
The heat exchange surface is designed to withstand extreme temperature peaks of up to +50°C. Highly accurate fan balancing reduces vibration and noise levels. Our corrosion-resistant tube material technology ensures reliable operation of cooling systems in all industries.
| Characteristics | Value (approximate) |
| Design | Air-cooled heat exchangers (ACO), tubular coolers, industrial cooling towers |
| Heat exchange surface area | from 150 to 25,000 m² |
| Pressure of cooled product | up to 40.0 MPa |
| Maximum initial product temperature | up to +350°C |
| Finning type of heat exchange tubes | Rolled (bimetallic) or wound (L, LL, KL, G) |
| General standards and specifications | International and interstate standards for air-cooled heat exchangers |
| Standards | GOST, API, ASME, O’zDST |
| Service life | from 20 years |
